BF-FL · Solar lighting
Light the yard, not the neighbours.

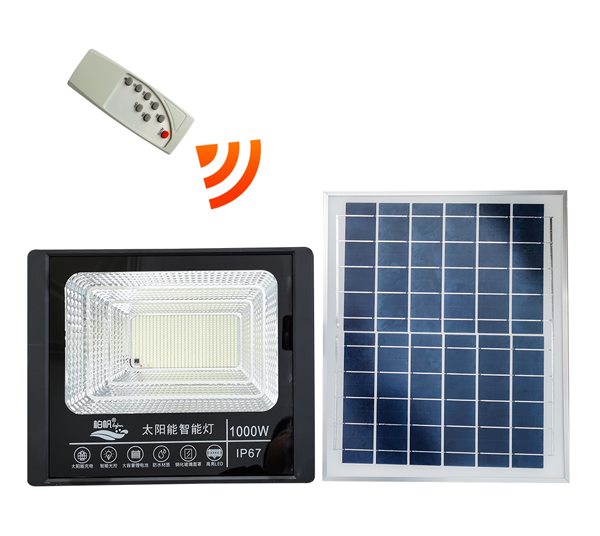

A compact area light for billboards, gates, yards, poultry sheds and construction sites. The flood body throws light down and forward, and the remote lets the owner dial brightness back to stretch autonomy through the rainy season. Five models are produced, from the 150 W-130 up to the 1000 W550 with a separate panel.
What you get
- Five models: 150 W-130, 300 W281, 600 W281, 1000 W-520, 1000 W550
- Remote control with brightness steps and timer
- Separate panel and cable on the high-output models for flexible siting
- Die-cast body, tempered glass front, IP66 and above
- Motion sensor option for security use
Specification
- Light source
- SMD LED, 6,000–6,500 K
- Beam
- Forward throw flood optic
- Battery chemistry
- LiFePO4 pack
- Controller
- Integrated, remote programmable
- Autonomy
- 2 to 4 overcast days, depending on the dimming step
- Ingress / impact
- IP66 and above
- Operating range
- -20 to 55 degrees C
- Mounting
- Wall bracket or 40 to 60 mm pole
- Warranty
- 2 years
Models
| Model | Power | Output | Battery | Array |
|---|---|---|---|---|
| BF-150W130 | 150 W | 15,000 lm | LiFePO4 | Integrated |
| BF-300W281 | 300 W | 30,000 lm | LiFePO4 | Integrated |
| BF-600W281 | 600 W | 60,000 lm | LiFePO4 | Separate |
| BF-1000W520 | 1000 W | 100,000 lm | LiFePO4 | Separate |
| BF-1000W550 | 1000 W | 100,000 lm | LiFePO4 | Separate |
Figures are indicative and depend on site conditions. Request the current datasheet and test report before specifying.
Where it goes
Quote request
Enquire about BF-FL
Attach nothing here — send the site details and we will ask for the drawings if we need them.
Related
Others in this division

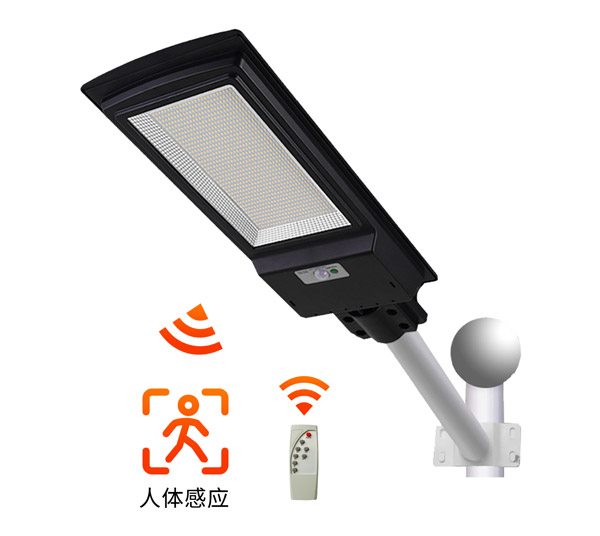

BF-AIO
